The screw punch is a screw-in type drilling punch that NONAKA Mfg.co.Ltd. acquired a utility model in 1977.
Since the blade automatically rotates just by pushing it from above, you can easily make holes in leather, cloth, paper, etc. without using force.
Please use it for leather crafts and more.
Screw punch made by NONAKA Mfg.co.Ltd. is particular about the sharpness of the blade.
You can make a clean hole without applying force.
Since the conventional punch is a method of hitting with a mallet, the force must be adjusted according to the thickness of the material to be drilled.
In addition, it has the disadvantage that there is a limit to the place and time that it can be used because it produces sound.
The screw punch does not need to be hit with a mallet or turned by hand.
Just press it from above like pressing a stamp, and the blade will automatically rotate and make a hole.
Since there is no sound, you can use it with confidence even at night, regardless of location.
Screw punch made by NONAKA Mfg.co.Ltd. is available with the following replacement blades.
In addition to making holes, you can also use the extracted hole circles as materials for human and animal eyes.

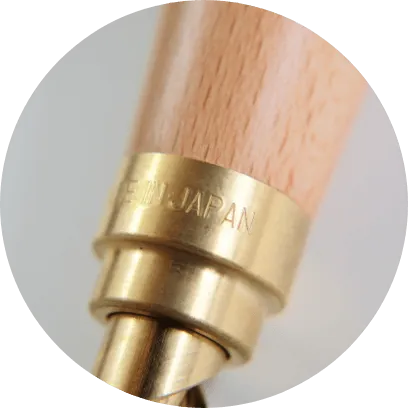

Screw punch of NONAKA Mfg.co.Ltd. acquired a utility model (1216912) in 1977, and the brim part is engraved with “SCREW PUNCH MADE IN JAPAN”.
Please be careful about inferior similar products.

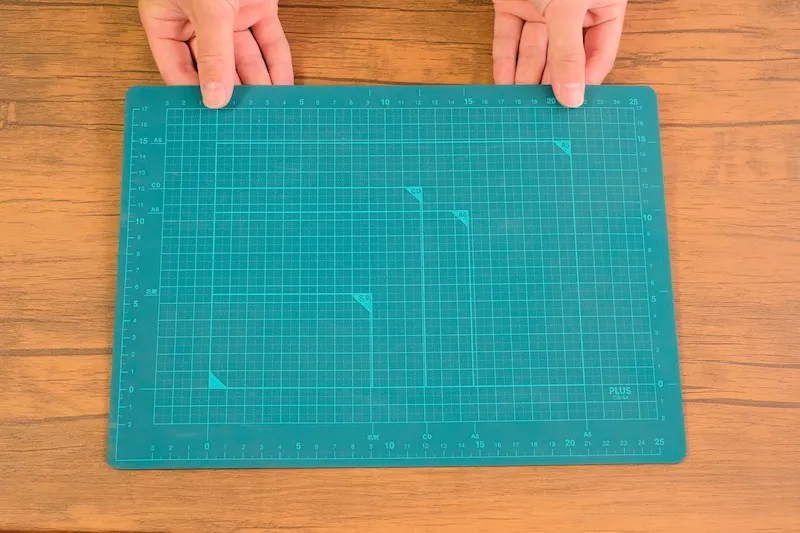

Please prepare a work mat so as not to damage the workbench such as a desk.

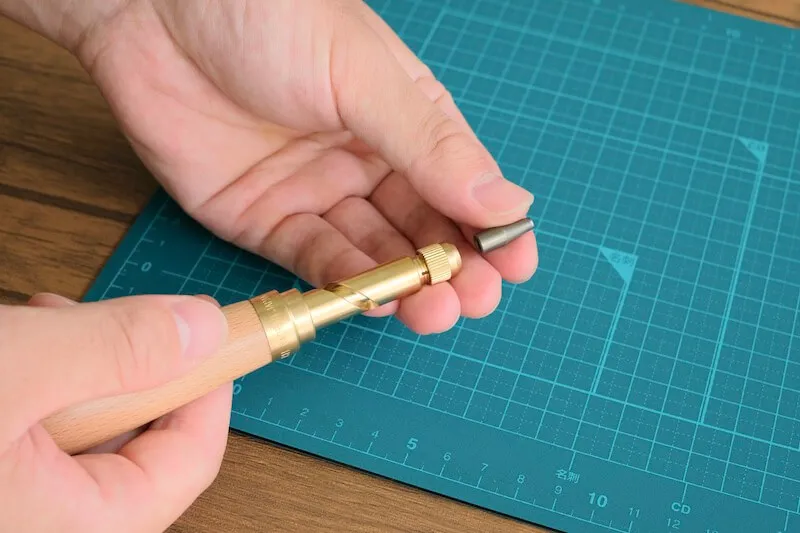

Attach the blade by turning the screw.

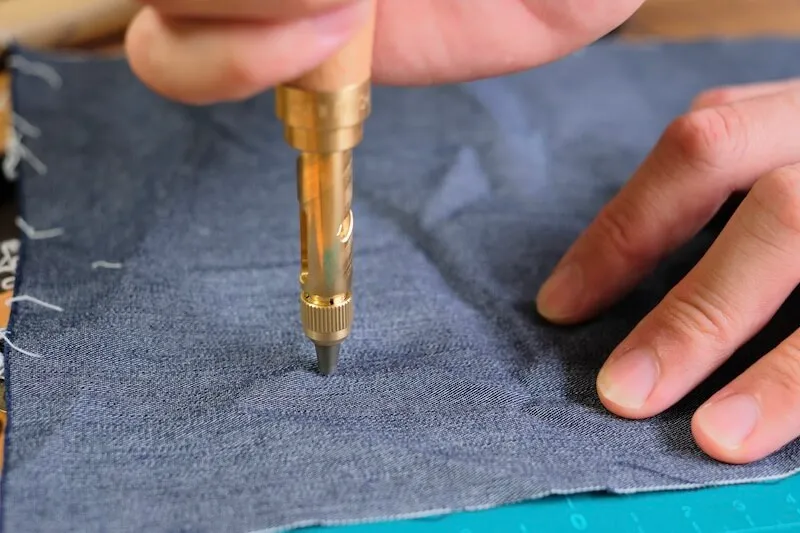

Push from directly above to the bottom without exerting any force. Once it has penetrated the material, gently pull it up.
The removed hole circle remains in the blade, but if you continue to use it, it will naturally come out from the upper hole.

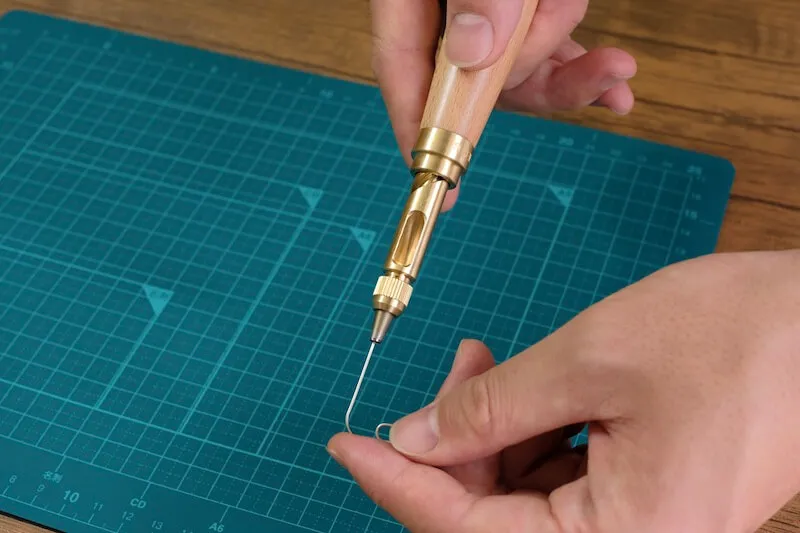

If you want to use the removed hole circle, prepare a thin wire (such as an extended clip) and insert it from under the blade. The hole circle that was pulled out comes out from the hole in the screw part of the main body.
Dimensions (length x width x height)：19 x 7 x 3 cm
Dimensions (length x width x height)：About13 x 2.5 x 2.5 cm
Size：1.0mm | 1.2mm | 1.5mm | 1.8mm | 2.0mm | 2.5mm | 3.0mm | 3.5mm | 4.0mm | 4.5mm | 5.0mm
